I650
To use this vessel model, include the line
         USE_VES I650
in your data file.

Main Particulars: 650 X 170 x 40 FT
Light Ship Weight: 47694 Kips

Comments:

  • Structural model included
  • Compartmentation included
  • Maximum jacket weight 44,000 S. Tons
  • Launch barge
  • Built Japan 80
  • The buoyancy of the tilt beams is modeled here. To get the correct position, you should set the variable lway_wdth to the width of the launch ways.

Click Here to look at the model data file:

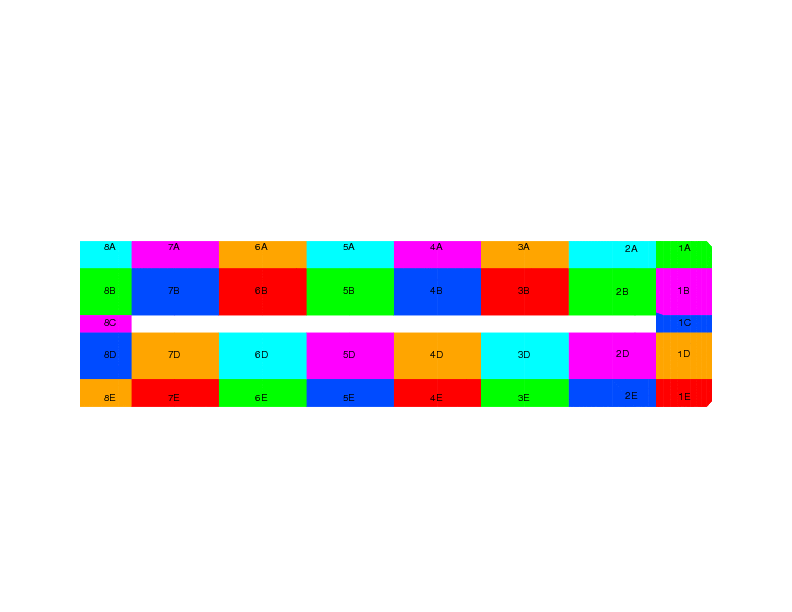

Plan:

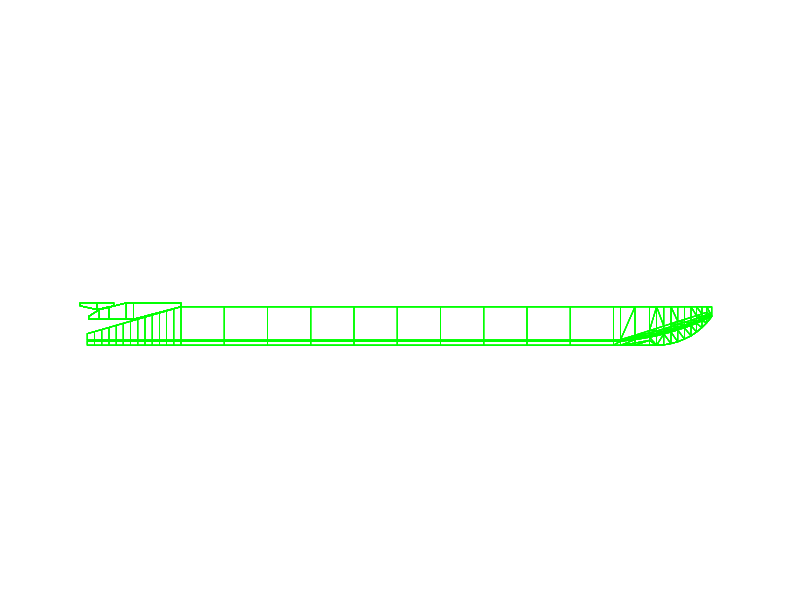

Profile:
