I627
To use this vessel model, include the line
         USE_VES I627
in your data file.

Main Particulars: 580 X 160 X 36 FT
                  177 X 49  X 11 M
Light Ship Weight: 18921 M-Tons

Comments:

  • Structural model included
  • Compartmentation included
  • EX Brown and Root 376
  • EI value based on Heeremac section modulus value of 33.33 m^3 see also barge structural representation at end of file

Click Here to look at the model data file:

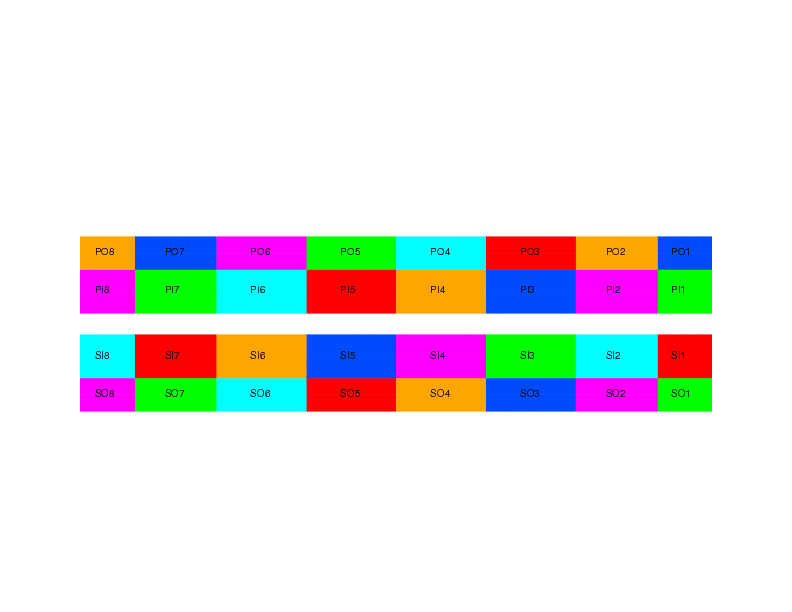

Plan:

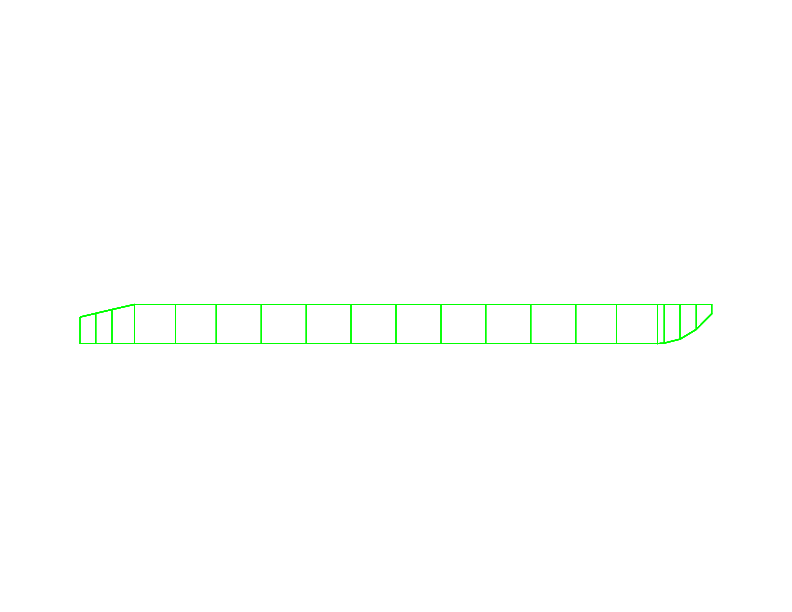

Profile:
