cmc45011
To use this vessel model, include the line
         USE_VES CMC45011
in your data file.

Main Particulars: 401.75 X 100 X 24.93 Feet
Light Ship Weight: 2790 L-Tons

Comments:

  • Structural model not included
  • Compartmentation included
  • Deck cargo barge

Click Here to look at the model data file:

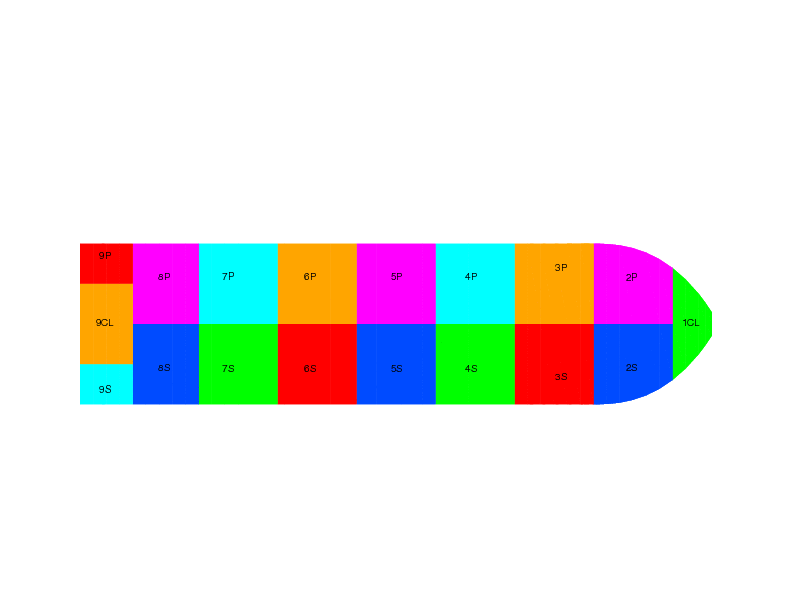

Plan:

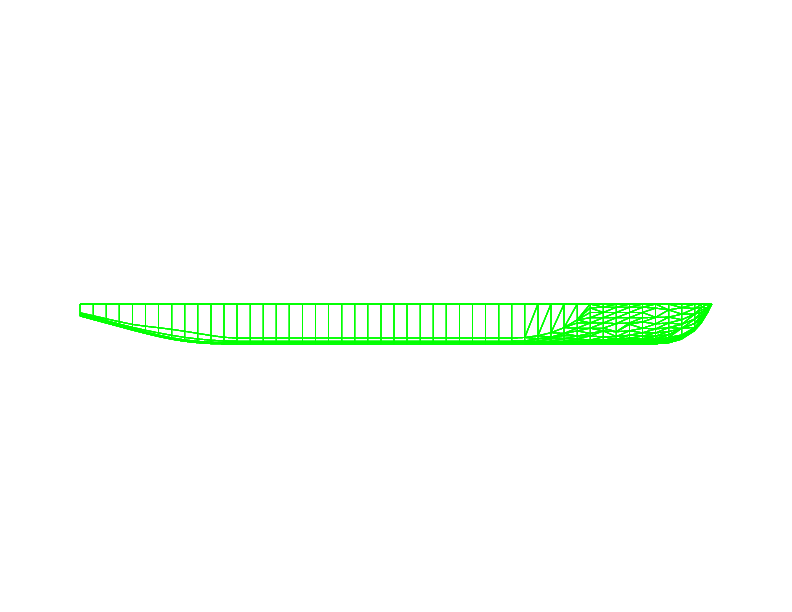

Profile:
