BOA07
To use this vessel model, include the line
         USE_VES BOA07
in your data file.

Main Particulars: 122.5m(loa) x 30.5m(brth) x 7.6m(dpth)
                  402.ft(loa) x 100ft(brth) x 25ft(dpth)
Light Ship Weight: 3502 M-Tons

Comments:

  • Structural model not included
  • Origin is at station 0 (the forward perpendicular)
  • Compartmentation included
  • Not a launch barge

Click Here to look at the model data file:

Plan:

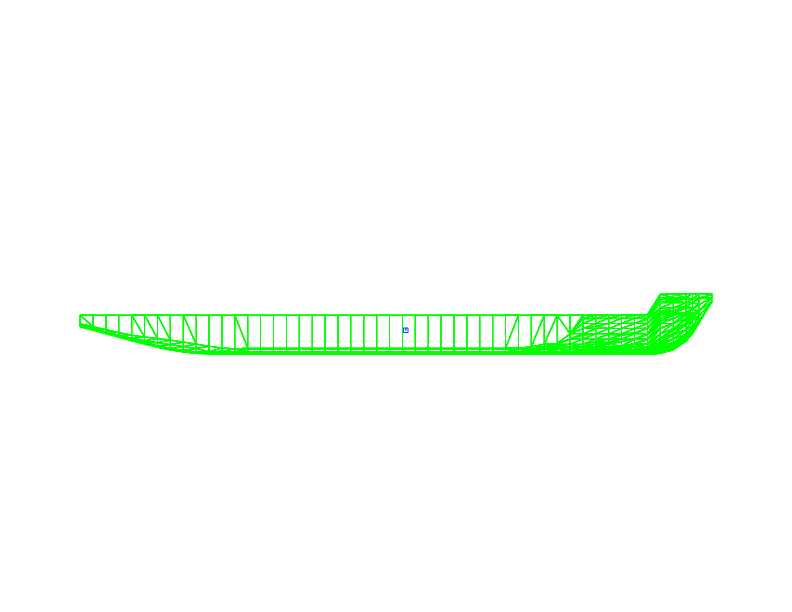

Profile:
